REGULATEURS
EUROPA
GOVERNORS
Official dealer.
REGULATEURS EUROPA
GOVERNORS
As an official dealer, Skandiaverken offers a range of REGULATEURS EUROPA governors.
Our technicians are trained directly by Regulateurs Europa and use original testing equipment. We provide professional overhaul services using only genuine spare parts.
All parts are certified to ensure the highest quality and performance. With a well-stocked inventory, we guarantee faster response and delivery times. Quality, price, and reliability are the cornerstones of all our marine spare parts and services.
Applications
- Diesel Engines
- Ships
- Locomotives
- Industrial Vehicles
REGULATEURS EUROPA
hydraulic governors

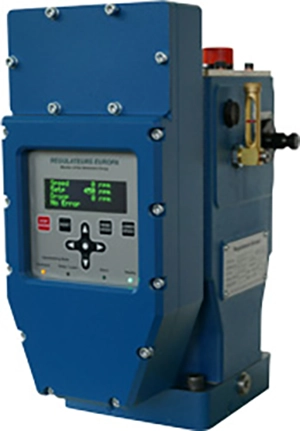

DG 2800.14
Electro-Hydraulic Governor
The DG 2800.14 is a microprocessor-controlled hydraulic governor, combining the proven RE 2800 series actuator with the HEINZMANN digital DC 14 controller. It includes an integrated speed pick-up, with the option for an external pick-up if needed. The DC 14 provides state-of-the-art speed control (steady-state speed variation < 0.1% at nominal speed), start fuel limiting, and generator-specific functionalities including optional isochronous load sharing.
Certification: DNV GL, ABS
Technical data
Output range Nm
20.3 | 41.7
Output range ft lbf
15 | 30

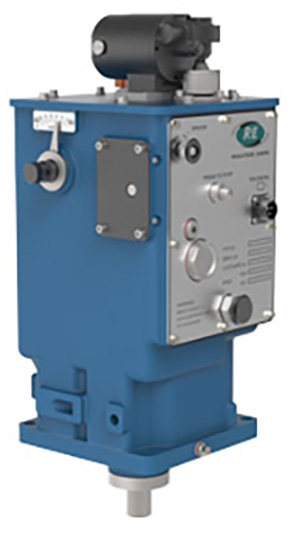

RE 1800-3G
A robust mechanical hydraulic governor offering mechanical speed control, featuring a two-stage, high-stiffness, backlash-free hydraulic servo mechanism for optimal control of engines requiring high work output. Available with optional start/boost pressure fuel limiter.
Technical data
Output range Nm
81 | 108
Output range ft lbf
60 | 80

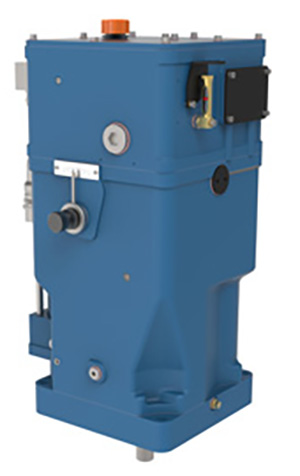

RE 1500-3G
The largest model in the RE series, this governor provides mechanical speed control and includes a two-stage, high-stiffness, backlash-free hydraulic servo mechanism for maximum control in high-demand applications. Optional start/boost pressure fuel limiter available.
Technical data
Output range Nm
163, 271, 339
Output range ft lbf
120, 200, 250

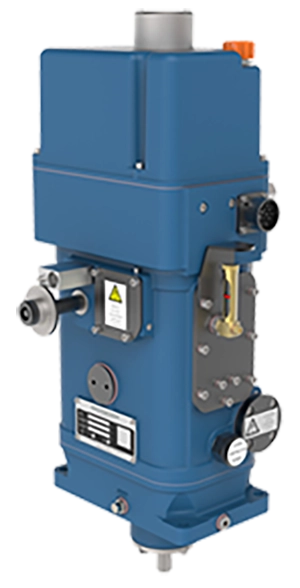

RE 1115-4G
Hydraulic governor with electronic speed setting for marine propulsion engines. Supports both analog (4–20 mA) and digital (raise/lower) speed setting modes. Features include electric stop, start fuel limiter, or boost pressure limiter, and 4–20 mA load signal output. A low-profile version is available for installations with limited space.
Technical data
Output range Nm
11, 16, 20, 34, 46, 54
Output range ft lbf
8, 12, 15, 25, 34, 40

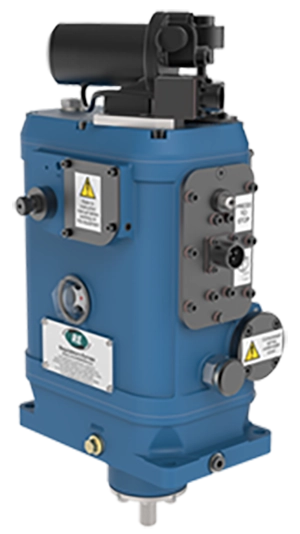

RE 1102-4G
A widely used hydraulic governor providing mechanical speed control for diesel or steam turbine-driven gensets. Options include electrically operated stop and/or start fuel limiter.
Technical data
Output range Nm
11, 16, 20, 34, 46, 54
Output range ft lbf
8, 12, 15, 25, 34, 40
